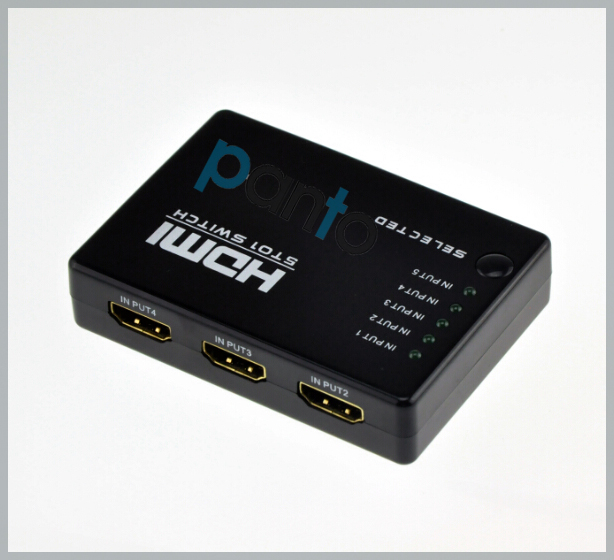

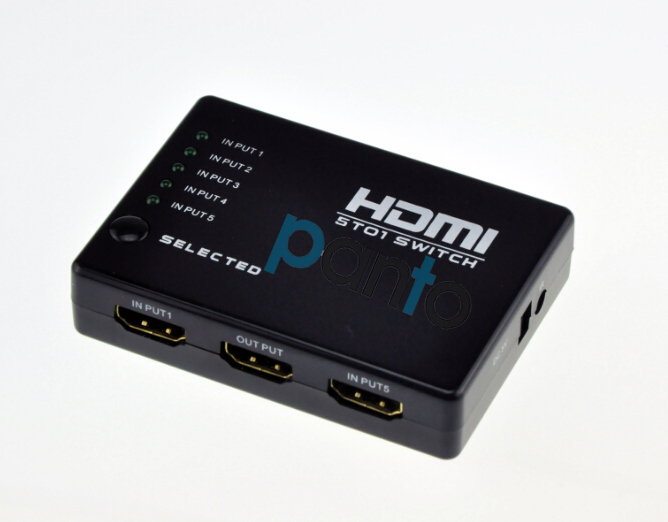

3D 1080P HDMI 5 way switcher plastic box

Product Name:

3D 1080P HDMI 5 way switcher plastic box

Number :

P-T-306B

Product Description:

3D 1080P HDMI 5 way switcher plastic box

FEATURES

This MiNi HDMI Amplifier Switcher has many features that enable it to perform in a superior manner. Among those features you will find:

1、Support 12-bit Deep Color, full 1080p

2、Support 3D

3、Multifunctional on switching : intelligent or mechanical

4、Supports with HDMI1.3b

5、High performance up to 2.5Gbps

6、Supports 25Meters HDMI Cable on both ends of the Switcher

7、Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, 1440p graphics and computer resolutions up to 1920 x 1200 are easily achieved

8、The product has another advantage, infrared function for learning. The customer can use this by setting the remote control simply at home. This is the first model of amputator which has learning function.

SPECIFICATIONS

Signal Inputs/Output
Input Video Signal	0.5-1.0 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Maximum SingleLinkRange	1920X1200, 1080P
Output Video	HDMI1.3b+HDCP1.0/1.1
Video format supported
VGA	640x480,800x600,1024x768,1920x1200
DTV/HDTV	480i/576i/480p/576p/720p/1080i/1080P
Digital Signal I/O
HDMI Compliance	HDMI 1.3b
Operating Frequency	50/60Hz
Frequency
Vertical FrequencyRange	60Hz
Video Amplifier Bandwidth	2.5Gpbs/250MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Mechanical
Size(H-W-D)	805817mm
Weight(Net)	90g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0℃to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)

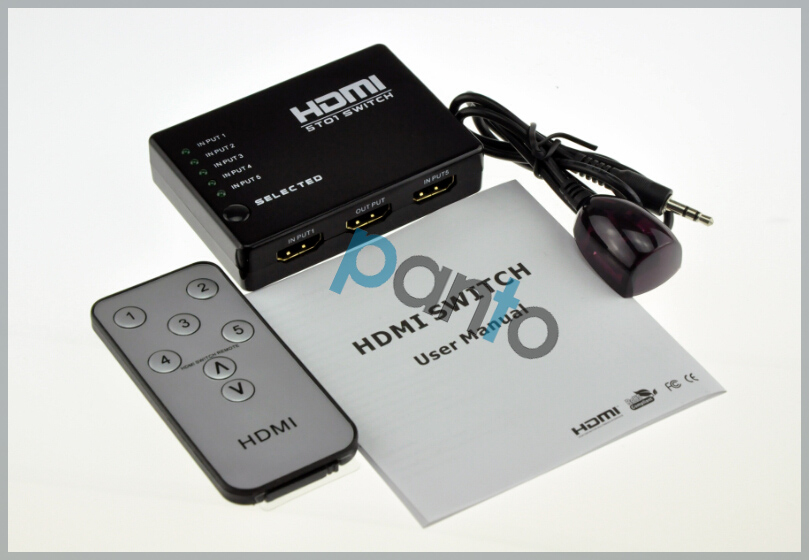

Accessories Adapter
User Manual	English Version
