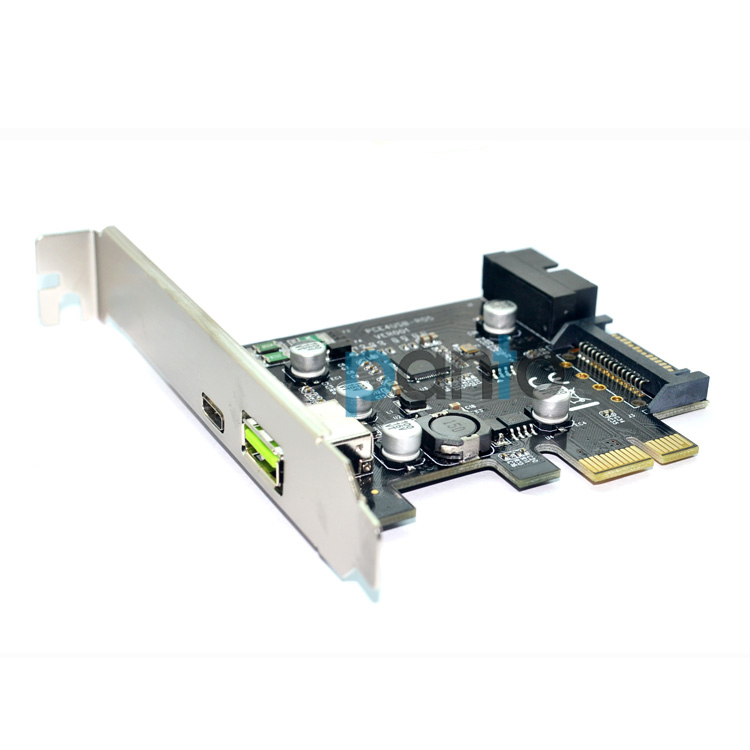

PCIE x1 to USB Type C +2.4A fast charger + 19pin USB3.0 header expansion card

Product Name:

PCIE x1 to USB Type C +2.4A fast charger + 19pin USB3.0 header expansion card

Number :

P-PCE4USB-R05

Product Description:

PCIE x1 to USB Type C +2.4A fast charger + 19pin USB3.0 header expansion card

Panto Technology Co.,Ltd
Specification(PCE4USB-R05)
Brand	Panto
Model No.	PCE4USB-R05
Type	PCIE USB3.0 expansion card
input	PCIE X1 Gen 1

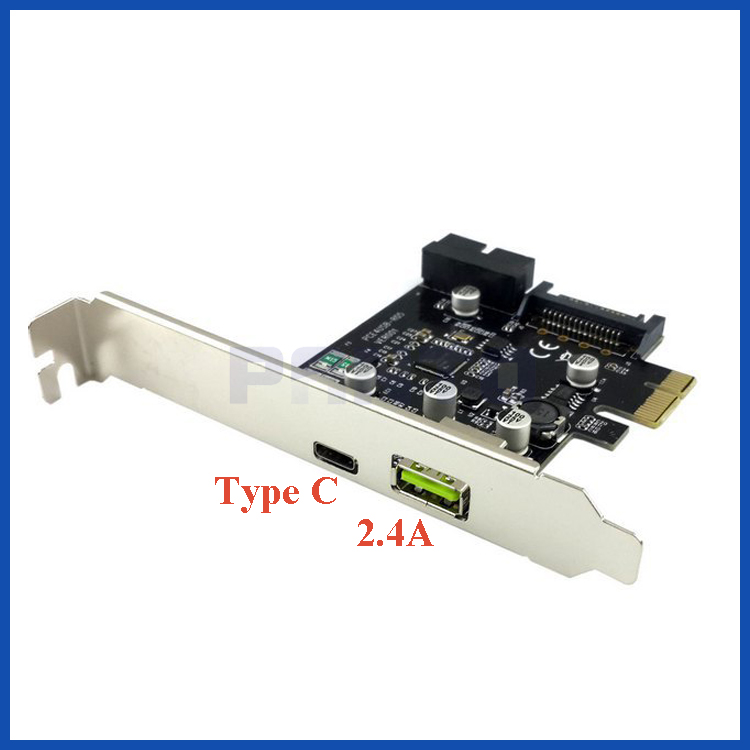

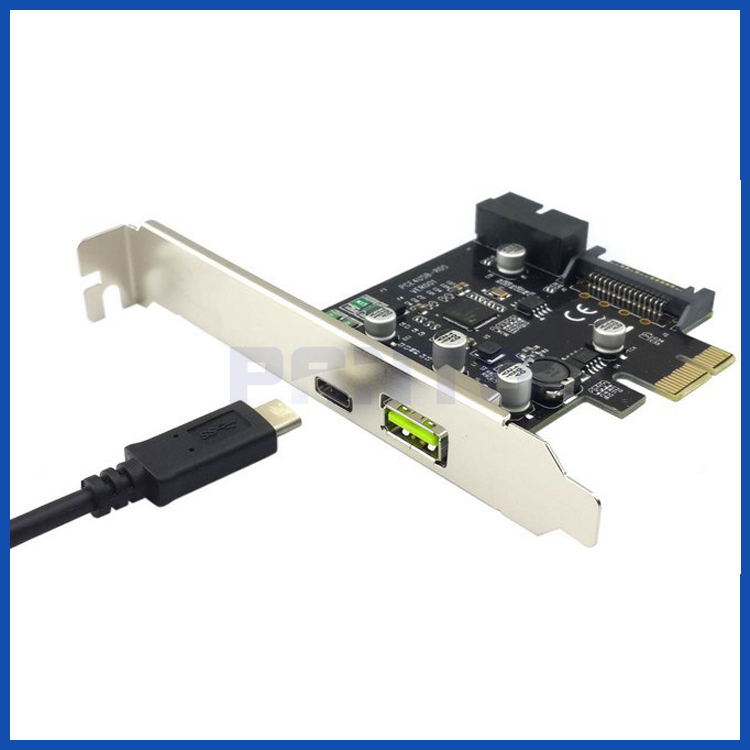

output	1 port USB3.0 Type C+ 2.4A USB +19pin USB3.0
Support interface	PCIE X4 X8 X16
Max transfer speed	5Gbps
Power support	SATA connector
Chipset	NEC D720201
Color	blue
Key features
1. Meet the PCI-Express Specification Version 2.0 2. Meet USB3.0 SuperSpeed specification version 1.0 3. Meet xHCI specification version 1.0 4. The main chip: NEC D720201 Chipset 5. The maximum transfer rate of up to 5Gbps, much higher than USB2.0 for 480Mb / s, up to 10 times; 6. backward compatible with USB2.0, USB1.1, USB1.0 7. Transfer rate: 5000/480/12 / 1.5Mbps 8. USB power output: up to 5V 2.4A (increase the current type) 9. Built-in power-enhanced SATA Interface 10. Support USB hot-plug function 11. Support Windows XP / 2003 / Vista / win7 / win8 / 2003 / MAC10.8 above systems.








Packing Details.
1. PCIe expansion card *1pc
2.CD disk *1pc
