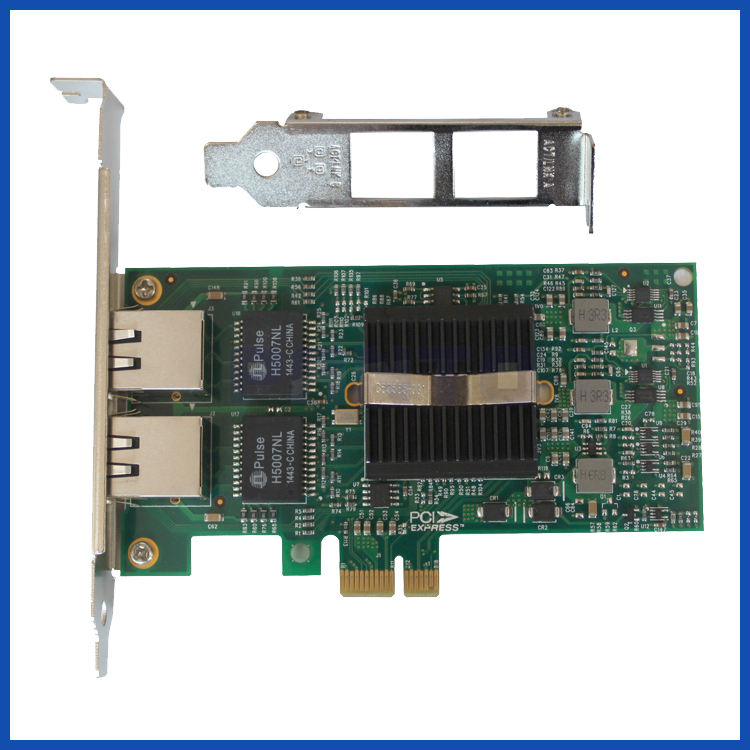

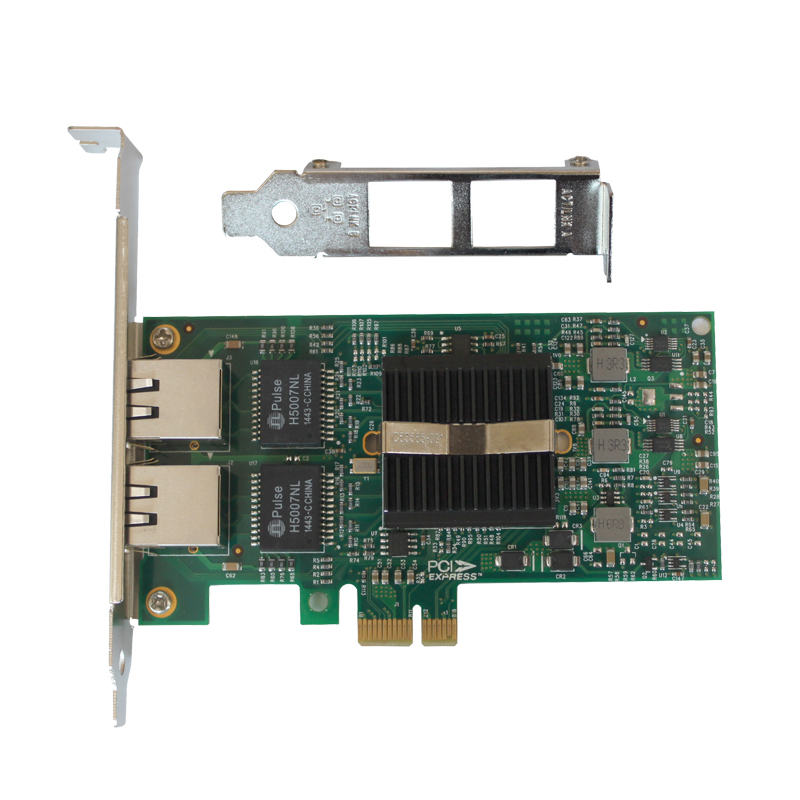

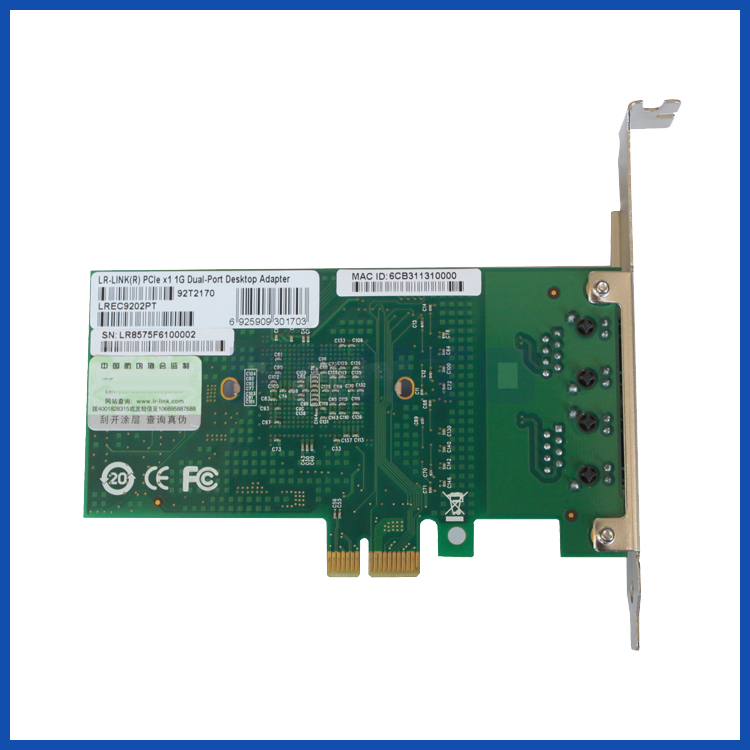

Desktop server PCI express x1 to 2port 1000Mbps 1G Gigabit internet RJ45 lan adapter card

Product Name:

Desktop server PCI express x1 to 2port 1000Mbps 1G Gigabit internet RJ45 lan adapter card

Number :

P-9202

Product Description:

Desktop server PCI express x1 to 2port 10/100/1000Mbps 1G Gigabit internet RJ45 lan adapter card

Gigabit Dual connector

Support VMDq

Support PCI-Express Base Specification, Rev.1.1RD

High-performance,reliable and low memory latency Intel 82575 gigabit ethernet controller, is a compact component with two fully integrated Gigabit Ethernet Media Access Control (MAC), physical layer (PHY) ports and SerDes interface

EEPROM and FLASH, it can be also be used in EEPROMless configurations

Increased throughput and lower CPU utilization,avoid PCI-express in jam

Hardware accelerate can partial load CUP tasks. Transmit and receive IP, TCP and UDP checksum off-loading

Capabilities, Transmit TCP segmentation

Reliable,useful Server levels and features

Link aggregation and load balancing:

• decided by switch:802.3ad (LACP),Generic Trunking (GEC/FEC)

• independent of switch and NIC

• Failover

Support 802.1p layer 2 priority encoding

Support802.1q VLAN tagging

Jumbo frame 9.5 kByte

Support 802.x flow control

Simple Network Management Protocol (SNMP) II statistics,Ethernet like MIB ,Ethernet MIB (802.3z,Clause 30)

Link/Active/Speed LED indicate
