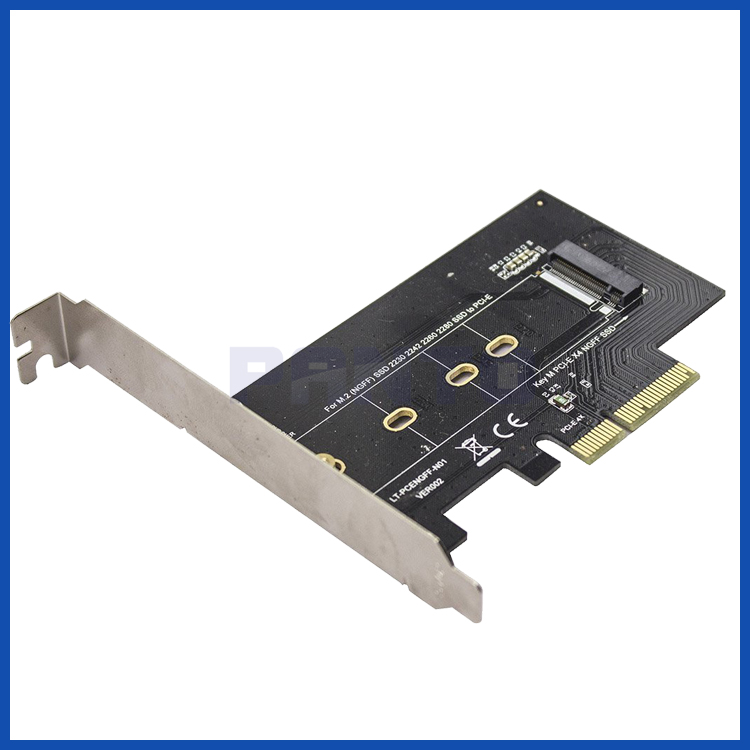

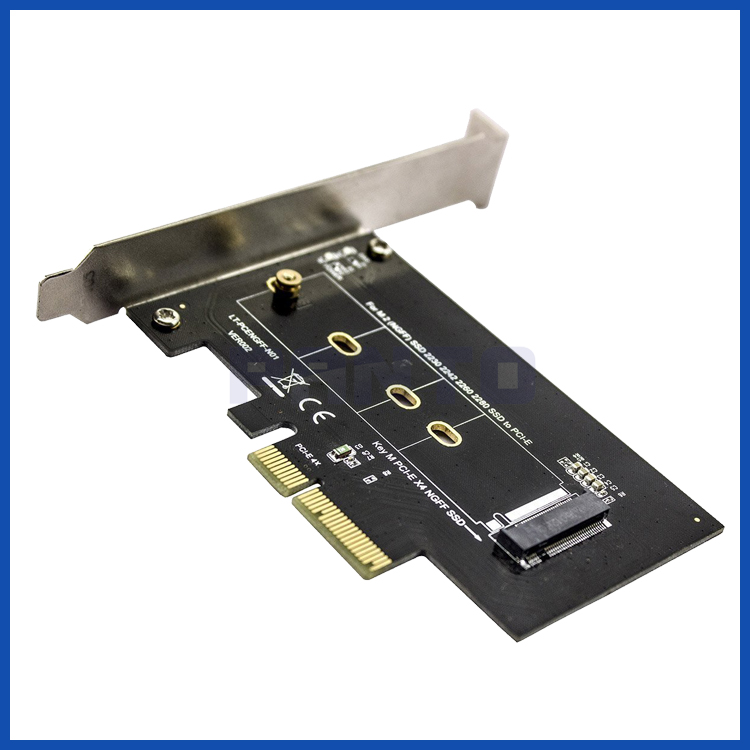

PCIE3.0 x4 to key M NGFF M.2 2280 SSD converter adapter card

Product Name:

PCIE3.0 x4 to key M NGFF M.2 2280 SSD converter adapter card

Number :

P-PCENGFF-N01

Product Description:

PCIE3.0 x4 to key M NGFF M.2 2280 SSD converter adapter card

M.2 NGFF PCIe based SSD works in main board PCIe x4 bus slot

PCI Express 3.0 x4 Lane Host adapter

Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 80mm, 60mm, 42mm 30mm SSD

Supports PCIe 1.0 ,PCIe 2.0 and PCIe 3.0 motherboard

Note: This adapter is only for 'M' key M.2 PCIe SSD such as Samsung XP941 SSD. Not compatible with a 'B' key M.2 PCIe x2 SSD or 'B' key M.2 SATA SSD,and it does't support SATA connection

Product Description

This PCIe 3.0 x4 Host Adapter for M.2 NGFF PCIe SSD allows the M.2 (PCIe) to be installed onto the standard PCI Express slot in the main board.

It is designed to work only with 'M' key M.2 PCIe SSD such as Samsung XP941 SSD.

Not support compatible with a 'B' key M.2 PCIe x2 SSD and 'B' key M.2 SATA SSD.

Features:

1. Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 80mm, 60mm, 42mm,30mm SSD

2. Convert M.2 NGFF PCIe based SSD to work in main board PCIe x4 bus slot

3. PCI Express 3.0 x4 Lane Host adapter

4. M.2 NGFF type 2280-D5-M connector on board

5. Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 , 2242 and 2230 SSD

6. Supports PCIe 1.0 ,PCIe 2.0 and PCIe 3.0 motherboard

7. Compliant with 38Gbps PCI Express 3.0

8. This adapter has two LED lights as work instructions

9. Regular size PCIe bracket on board

10. Do not drive simple operation

11. Supports any OS like Windows, Mac and Linux

12.M.2 PCIe SSD power from PCIe bus slot 3.3V

13. This adapter does't support M.2 SATA based SSD connection

Package contents:

1.PCIe 3.0 x4 Adapter card*1pcs

2.Screw*1set
