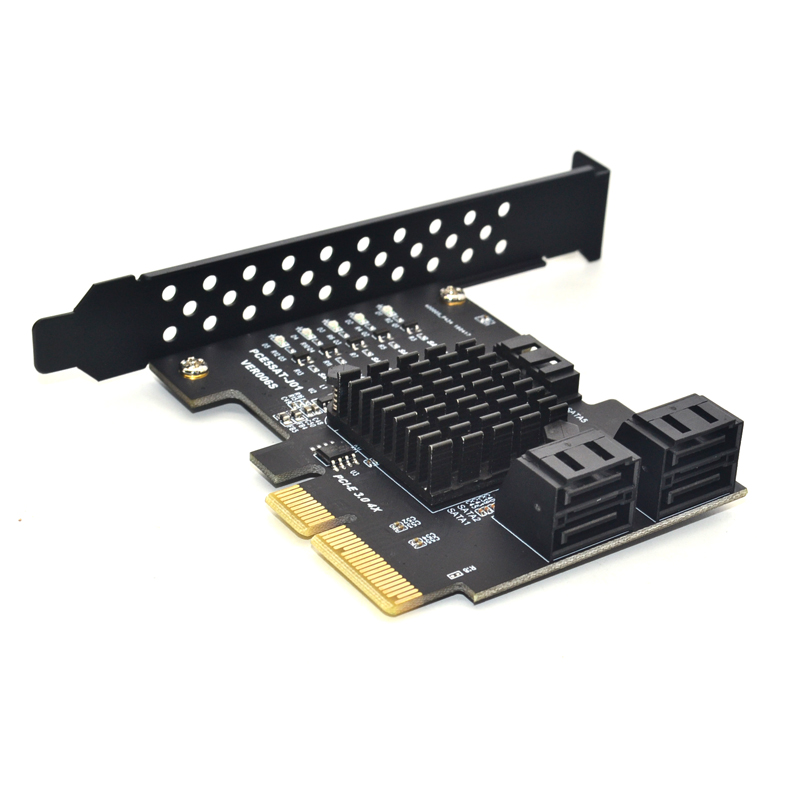

2019 PCIE x4 Gen 3 to 5 SATA Card PCI-E Adapter PCI Express to SATA3.0 Expansion Card 5Port SATA III 6G for SSD HDD IPFS Mining
Product Name:
2019 PCIE x4 Gen 3 to 5 SATA Card PCI-E Adapter PCI Express to SATA3.0 Expansion Card 5Port SATA III 6G for SSD HDD IPFS Mining
Number :
P-PCE5SAT-J01
:
:

Product Description:

2019 PCIE x4 Gen 3 to 5 SATA Card PCI-E Adapter PCI Express to SATA3.0 Expansion Card 5Port SATA III 6G for SSD HDD IPFS Mining

Product Model
Model Number P-PCE5SAT-J01-006S
Warranty Information
Warranty 18 months
Hardware
Bus Type PCI Express
Card Type Standard Profile ( Low Profile bracket optional )
Chipset ID
JMicron JMS585
Industry Standards Serial ATA Specification 3.0
PCI Express Base Specification Rev. 2.0
AHCI & IDE &FIS Compliant
Support Native Command Queuing(NCQ)
Interface SATA III
Port Style Integrated on Card
Ports 5
Performance
Maximum Data Transfer Rate 6 Gbps
Type and Rate SATA III - 6 Gbit/s
RAID NO
Connector(s)
Connector Type(s) 1 - PCI Express x1 Male
Internal Ports 4 - SATA (7 pin; Data) Plug
Software
OS Compatibility Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Linux
Special Notes / Requirements
Note

The maximum throughput of this card is limited by the bus interface.

PCI Express Gen 1.0 max throughput is 2.5Gbps.

PCI Express Gen 2.0 max throughput is 5Gbps.

System and Cable Requirements

PCI Express enabled computer or server with an available

PCI Express x4 slot or higher ( x8, x16)

Package content
Included in Package 1 - 5 Port PCI Express SATA III Card
1 - Driver CD
