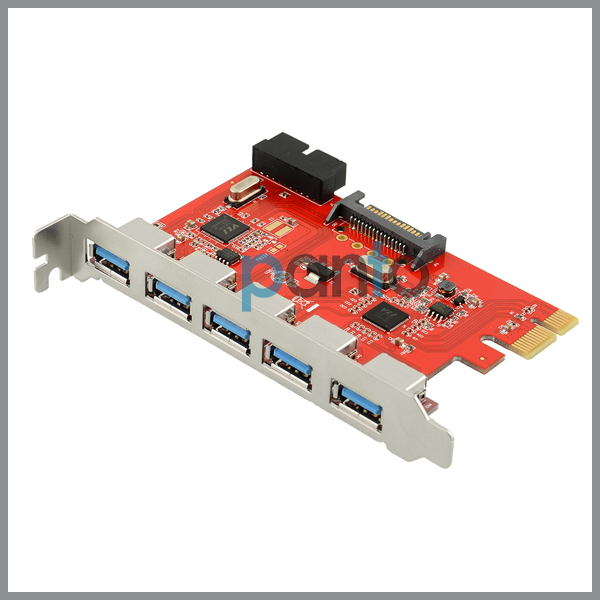

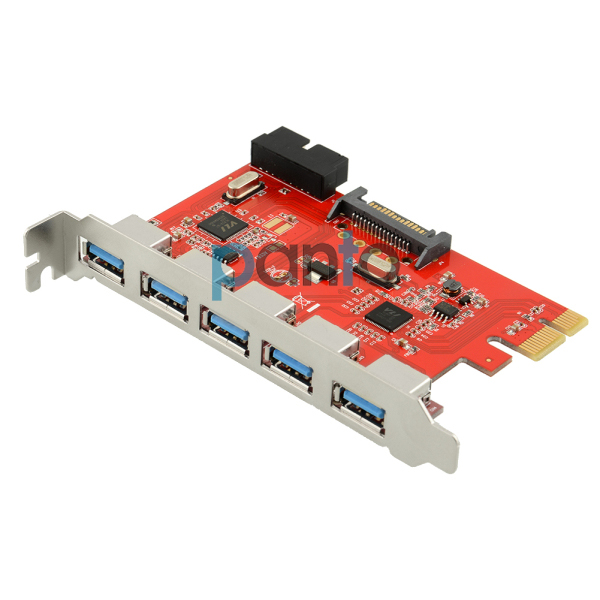

PCIE x1 to 5 ports USB3.0 with 19/20 pin USB3.0 expansion card

Product Name:

PCIE x1 to 5 ports USB3.0 with 19/20 pin USB3.0 expansion card

Number :

P-LTU359P

Product Description:

PCIE x1 to 5 ports USB3.0 with 19/20 pin USB3.0 expansion card

Description
Upgrade your PC with support for the latest in USB technology with a 7-Port SuperSpeed USB 3.0 PCI Express Adapter Controller Card. SuperSpeed USB 3.0 boasts data transfer rates of up to 5Gbps- more than 10X that of its predecessor. With quick and easy installation, you'll enjoy the lightning fast transfer rates of USB 3.0 devices performing at full speed potential.

Features and Specifications

Supports up to 7 USB 3.0 devices.
Motherboard 20P connector available for expanding 2 more USB 3.0 ports to PC case front panel.
Compliant with USB 3.0 specification.
Compatible with USB 2.0 & 1.1 specification.
Date transfer rate up to 5.0Gbps / 625MB/s.
Compliant with Single-Lane (x1) PCI-Express specification revision 1.0a.
Supports 2.5Gbps PCI-E bus with full duplex channel.
Stable and reliable Chipset VLI VL812/VL805.
5 external USB 3.0 type A female connectors.
One motherboard 20P male connector available for 2 more USB 3.0 ports.
Plug & play and hot swapping capability.
Bus-powered mode and no external power required for most of peripherals.
15 Pin SATA power connector available for some high current consumption peripherals or 3 above devices at the same time.
Support Windows XP / Vista / 7 / 8.

Package Includes:
1x 5-Port USB 3.0 PCI Express Controller Card
1x Installation CD
