Analog to Digital audio converter

Product Name:

Analog to Digital audio converter

Number :

P-T608

Product Description:

Analog to Digital audio converter

Introduction

This Analog to Digital Audio Converter is designed for either home or professional audio switching. It converts analog stereo audio signal from R/L input to Coaxial and Toslink outputs simultaneously. The output digital audio signal is 2-channel uncompressed LPCM (Linear Pulse Code Modulation) with sampling rate at 48 KHz. This Converter is small in size and quite easy to install.

Features

This Converter has many features that enable it to perform in a superior manner. Among those features you will find:

1.Supports uncompressed 2-channel LPCM digital audio signal output.

2.Supports output sampling rate at 48 KHz.

3.Provides electromagnetic-noise-free transmission.

4.Easy to install and simple to operate.

SPECIFICATIONS

Signal Inputs/Output
Input Audio	Stereo R/L
Output Audio	LPCM

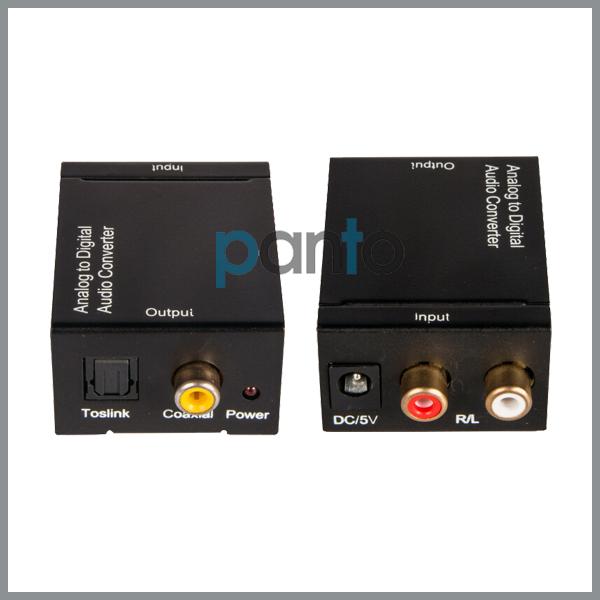

Connector
Input audio connector	2XRCA（R/L）
Output audio connector	Toslink、1XRCA(Coaxial)
Audio Connector	Toslink Audio and Digital Audio
Operating Frequency
Sampling rate	48KHz
Mechanical
Size(L-W-H)	50X40X35MM
Weight (Net)	78g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@1A
Power Consumption	0.5 watts (max)
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual	English Version

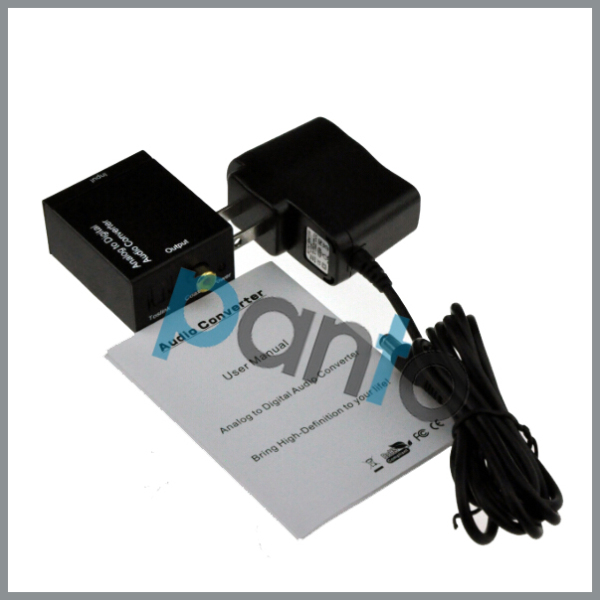

Package Contents

1)Main unit (Analog to Digital Audi Converter).

2)5V DC Power Supply.

3)User’s Manual
